Kyosho MR-03 Platform Guide: Setup and Upgrades

The MR-03 is the benchmark for 1/28 RWD racing. It’s the platform most serious indoor racers run, and for good reason: the chassis is well-engineered, parts availability is excellent, and the tuning depth is substantial.

New to Mini-Z? Check our MR-03 vs MR-04 Buyer Guide to see if you should stick with the classic or jump to the new EVO2 platform.

If you’re brand new to Mini-Z and just picked up your first car, start with the First 5 Upgrades instead. This guide assumes you’re ready to go beyond the basics.

This guide covers the core upgrade path from stock to competitive. If you have not done the basics yet, start with the 5 best first Mini-Z upgrades before diving into MR-03-specific tuning.

Chassis Foundation

Start with bearings and T-plate as described in the First 5 Upgrades guide. The foundation (bearings and T-plate) runs $30-50 total and is the highest-return first spend on the platform. For MR-03 specifically, the rear T-plate choice matters a lot. The platform is sensitive to rear flex stiffness, so the T-Plate Setup guide covers how stiffness affects handling in detail.

The T-plate to buy first is medium carbon. It’s the most forgiving flex point for RCP and the one most A-main club drivers run as their baseline. → Mini-Z Carbon T-Plate on Amazon

On bearings: the bushing-to-bearing upgrade is the most important step, but once you’re running steel bearings and want to squeeze more performance, the Bearing Upgrades: Ceramic vs Steel guide covers which positions on the MR-03 drivetrain justify the cost of ceramic. For most club racers starting out, the steel full set is the right call. → FastEddy Sealed Bearing Kit for MR-03 on Amazon

For high-grip RCP surfaces, run a stiffer carbon T-plate. For carpet or lower-grip surfaces, a medium flex gives better traction.

Motor and Electronics

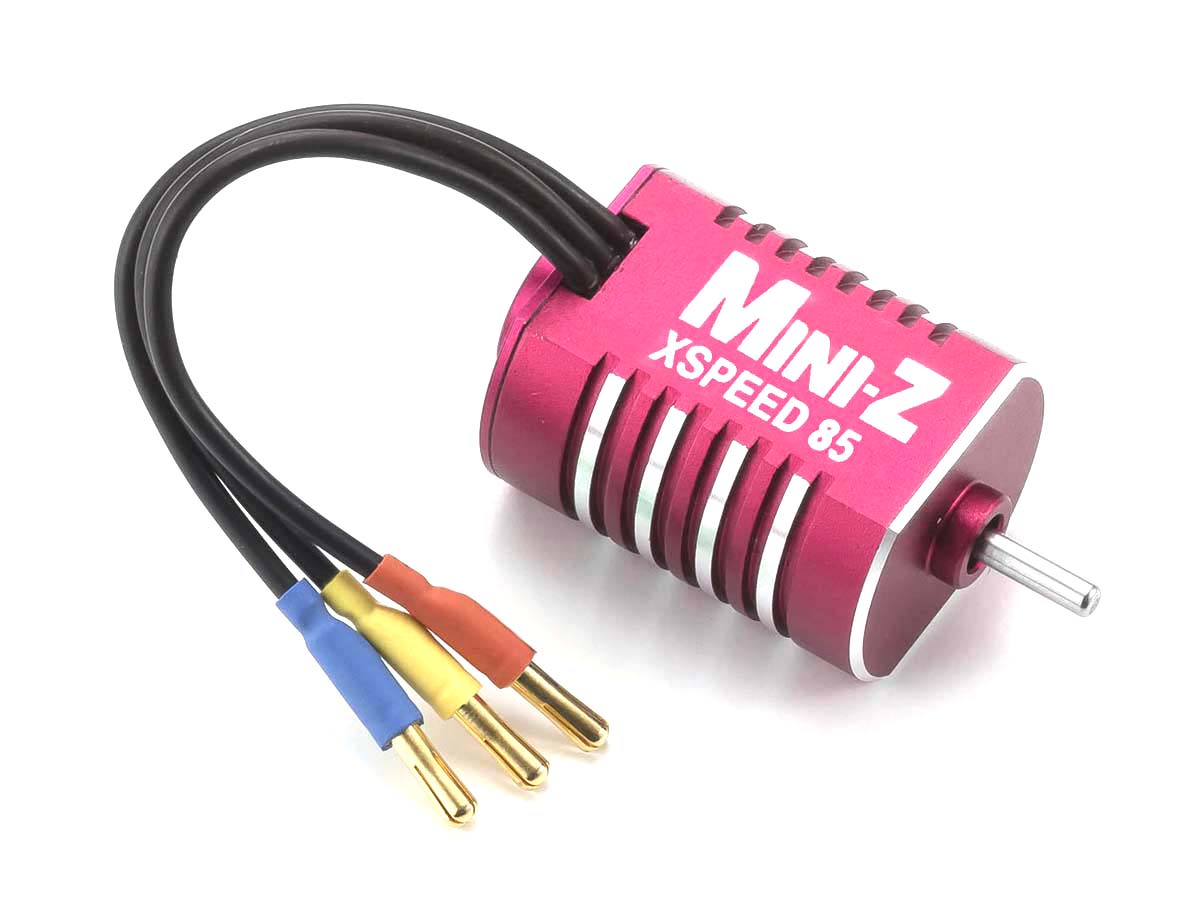

The stock brushed motor will get you started, but a brushless conversion is where the performance ceiling rises significantly. The MR-03 EVO accepts brushless motors in the stock motor mount.

If you’re staying in a brushed class, the intermediate step before brushless is replacing the stock MOSFET transistors on the receiver board. Lower-resistance FETs deliver more current to the motor and run cooler under load. I put this mod on every brushed chassis I run before touching anything else on the electronics side. It’s that consistent. Before the FET swap, the motor itself is worth understanding: turn count selection for your track type, what KV means in a brushed context, and when brushed stops making sense. The Brushed Motor Guide covers all of that with a decision matrix and specific motor picks.

Popular options for brushless include the Atomic brushless system and PN Racing’s brushless conversion kit. The Hobbywing EZRUN Mini28 combo gives you motor and ESC together and is the most straightforward entry into brushless on this platform. → Hobbywing EZRUN Mini28 Brushless Combo on Amazon. These require a brushless-compatible ESC. See the ESC Tuning guide for how to dial in punch, brake, and drag brake once you’re brushless. Pinion selection is the first tuning decision after any motor change. The Mini-Z Pinion Gear Ratio Reference covers the full 6T-11T range for the MR-03 with motor type and track surface context.

Suspension Tuning

The MR-03 has a relatively simple suspension setup, but the details matter. Front spring rate, knuckle offset, and toe settings all affect how the car turns in and tracks through corners.

Start neutral and adjust one thing at a time. Front springs: stiffer helps high-speed stability, softer helps low-speed rotation. Rear toe: slight toe-in increases straight-line stability.

The MR-03 is the most front-spring-sensitive platform in the lineup. If you’re fighting understeer on entry or snap oversteer on exit, the Spring Rate Tuning guide walks through the diagnosis by symptom: what the car is telling you and exactly which spring to change. The Droop and Camber guide covers the mechanical fundamentals that have to be right before spring tuning pays off. Once springs and T-plate are sorted and you still have excessive body roll through long sweepers, the Sway Bar Setup guide explains when a sway bar is actually the right fix and what to buy for the MR-03.

For cars running rear oil shocks, the damper oil weight is a tuning variable that sits between spring rate and T-plate flex: heavier oil slows compression and rebound, calming the rear on corner entry; lighter oil keeps the rear more active. The Mini-Z Damper Oil guide covers standard weight choices for carpet and RCP, plus the refill procedure and change intervals.

For rear differential tuning, the Ball Diff vs Gear Diff guide breaks down when each type is worth running on the MR-03.

Tires

Tires are the single biggest factor in lap time on the MR-03. Start with a surface-matched compound from the Tire Guide and use the Wheel Offset and Width Guide to match your body shell. Racing on RCP? The Best RCP Tires guide gives exact part numbers. If you’re setting up a home RCP track to tune on, the RCP Track Setup Guide covers the tile counts, layout principles, and timing systems used at the club level.

For a budget-focused build path with specific purchase links, see the MR-03 First Upgrades Under $50. Not sure how to configure the car differently for racing versus casual driving? The Racing vs Bashing Setup guide breaks down the specific changes. The MR-03 benefits the most from getting this right. If you’ve been adding parts steadily but lap times have plateaued, the Diminishing Returns Trap guide covers the four upgrade patterns that stop helping on the MR-03 and gives a four-step diagnostic before the next purchase.

Product images courtesy of Kyosho.
